RedSabre / CW 1500W D20T4.5 F150 Focus Lens for SUP21T / SUP23T

Catalog SKU LWD-OPT-005

$39.95 USD

Sold out

Check part specifications.

Compare the original part number, head version and dimensions before ordering. Choose a machine to see its model-specific requirements.

Read specifications and fitment ↓Change machine ↗

Currently sold out. Ordering will reopen when stock is received.

Ask about this part ↗
Exact part referencesClear pack contentsMachine fitment guidance

Machine fitment

Find your exact model below, then check the required head, connection or original part number.

Machine Required configuration
Everlast RedSabre 1500 Requires SUP21T or SUP23T on the installed gun; match the original optical or wire-feed specification. Confirm the gun label: published RedSabre 1500 head names conflict.
Everlast RedSabre 2000 Requires SUP21T or SUP23T on the installed gun; match the original optical or wire-feed specification.
Everlast RedSabre 1500X Requires SUP21T or SUP23T on the installed gun; match the original optical or wire-feed specification. Confirm the gun label; the 1500X model name does not establish its head revision.
Everlast RedSabre 2000X Requires SUP21T or SUP23T on the installed gun; match the original optical or wire-feed specification. Confirm the gun label: published 2000X information names different head revisions.
Lasers Only CW 1500W 4-in-1 Requires the SUP23T welding head. Match the complete lens or cartridge specification; machine wattage alone is insufficient.

An aftermarket replacement optic for the specified SUP welding-head configuration.

Specifications

Part number LWD-OPT-005
Diameter 20 mm
Thickness 4.5 mm
Focal length 150 mm
Pack contents 1 bare lens

Part-specific requirements

Head compatibility to confirm: SUP21T, SUP23T heads. For a RedSabre or Lasers Only machine, first verify that the installed head is one of these models and that the complete optical or cartridge specification matches the original.

Fitment limits: No SUP33T compatibility is claimed. An aftermarket sourcing candidate is not an OEM-certified machine replacement.

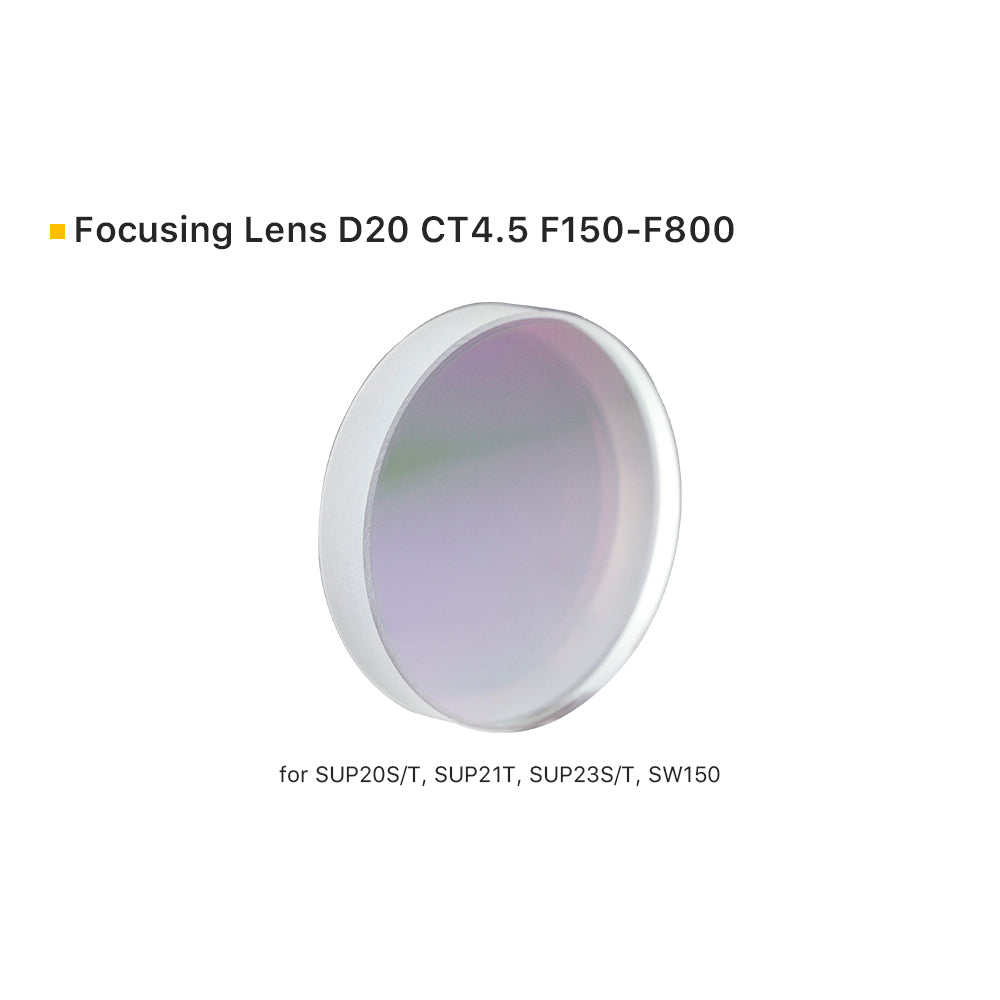

Reference image may show several configurations. This listing includes only the single part and specification named above.
