RedSabre / CW 1500W D20T4.5 F200 Focus Lens for SUP21T / SUP23T
Catalog SKU LWD-OPT-006
Special order
Match the original part number, welding-head version and specification before choosing a replacement.
Selected configuration:
Read specifications and fitment ↓Change machine ↗Special order. Stock availability and dispatch date will be confirmed after ordering. If the part cannot be supplied, the order will be refunded.
Machine fitment
Find your exact model below, then check the required head, connection or original part number.
| Machine | Required configuration |
|---|---|
| Everlast RedSabre 1500 | Requires SUP21T or SUP23T on the installed gun; match the original optical or wire-feed specification. Confirm the gun label: published RedSabre 1500 head names conflict. F200 is an alternate setup, not a substitute for F150. |
| Everlast RedSabre 2000 | Requires SUP21T or SUP23T on the installed gun; match the original optical or wire-feed specification. F200 is an alternate setup, not a substitute for F150. |
| Everlast RedSabre 1500X | Requires SUP21T or SUP23T on the installed gun; match the original optical or wire-feed specification. Confirm the gun label; the 1500X model name does not establish its head revision. F200 is an alternate setup, not a substitute for F150. |
| Everlast RedSabre 2000X | Requires SUP21T or SUP23T on the installed gun; match the original optical or wire-feed specification. Confirm the gun label: published 2000X information names different head revisions. F200 is an alternate setup, not a substitute for F150. |
| Lasers Only CW 1500W 4-in-1 | Requires the SUP23T welding head. Match the complete lens or cartridge specification; machine wattage alone is insufficient. |
An aftermarket replacement optic for the specified SUP welding-head configuration.
Specifications
| Part number | LWD-OPT-006 |
|---|---|
| Diameter | 20 mm |
| Thickness | 4.5 mm |
| Focal length | 200 mm |
| Pack contents | 1 bare lens |
Part-specific requirements
Head compatibility to confirm: SUP21T, SUP23T heads. For a RedSabre or Lasers Only machine, first verify that the installed head is one of these models and that the complete optical or cartridge specification matches the original.
Fitment limits: No SUP33T compatibility is claimed. An aftermarket sourcing candidate is not an OEM-certified machine replacement. F200 is not a drop-in substitute for an F150 setup.

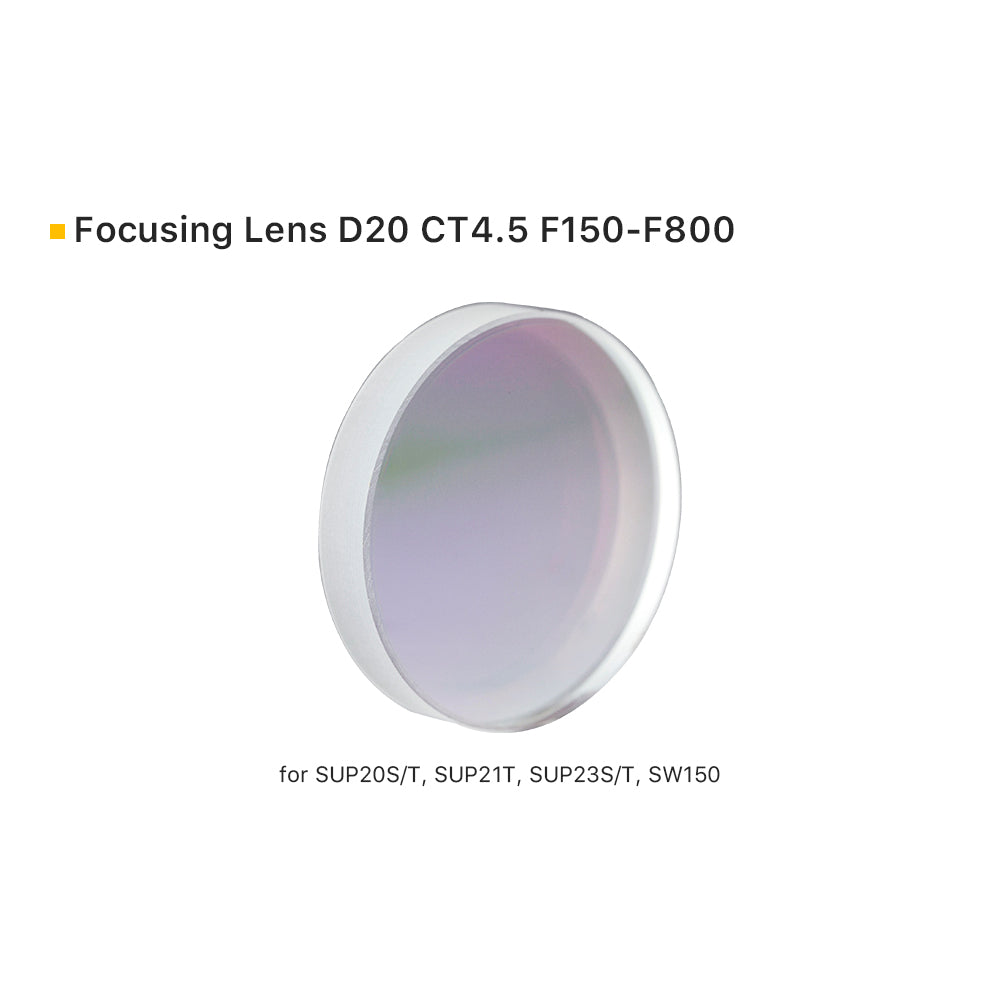

Reference image may show several configurations. This listing includes only the single part and specification named above.
