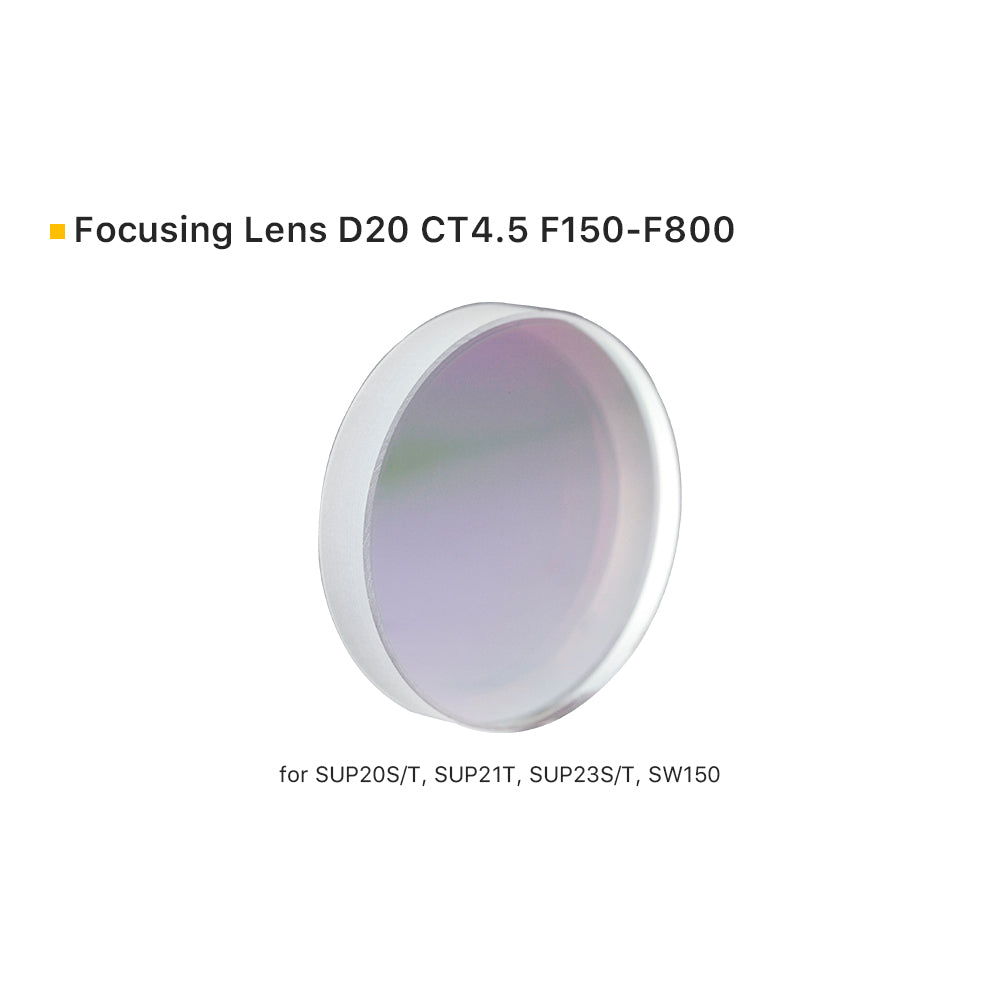

RedSabre / CW 1500W D20T4.5 F800 Cleaning Focus Lens for SUP21T / SUP23T
Catalog SKU LWD-OPT-007
Special order
Match the original part number, welding-head version and specification before choosing a replacement.
Selected configuration:
Read specifications and fitment ↓Change machine ↗Special order. Stock availability and dispatch date will be confirmed after ordering. If the part cannot be supplied, the order will be refunded.
Machine fitment
Find your exact model below, then check the required head, connection or original part number.
| Machine | Required configuration |
|---|---|
| Everlast RedSabre 1500 | Requires SUP21T or SUP23T on the installed gun; match the original optical or wire-feed specification. Confirm the gun label: published RedSabre 1500 head names conflict. Use only the F800 cleaning configuration. |
| Everlast RedSabre 2000 | Requires SUP21T or SUP23T on the installed gun; match the original optical or wire-feed specification. Use only the F800 cleaning configuration. |
| Everlast RedSabre 1500X | Requires SUP21T or SUP23T on the installed gun; match the original optical or wire-feed specification. Confirm the gun label; the 1500X model name does not establish its head revision. Use only the F800 cleaning configuration. |
| Everlast RedSabre 2000X | Requires SUP21T or SUP23T on the installed gun; match the original optical or wire-feed specification. Confirm the gun label: published 2000X information names different head revisions. Use only the F800 cleaning configuration. |
| Lasers Only CW 1500W 4-in-1 | Requires the SUP23T welding head. Match the complete lens or cartridge specification; machine wattage alone is insufficient. |
An aftermarket replacement optic for the specified SUP welding-head configuration.
Specifications
| Part number | LWD-OPT-007 |
|---|---|
| Diameter | 20 mm |
| Thickness | 4.5 mm |
| Focal length | 800 mm |
| Pack contents | 1 bare lens |
Part-specific requirements
Head compatibility to confirm: SUP21T, SUP23T heads. For a RedSabre or Lasers Only machine, first verify that the installed head is one of these models and that the complete optical or cartridge specification matches the original.
Fitment limits: No SUP33T compatibility is claimed. An aftermarket sourcing candidate is not an OEM-certified machine replacement. For the 800 mm cleaning configuration; not the normal F150 welding setup.
Reference image may show several configurations. This listing includes only the single part and specification named above.
