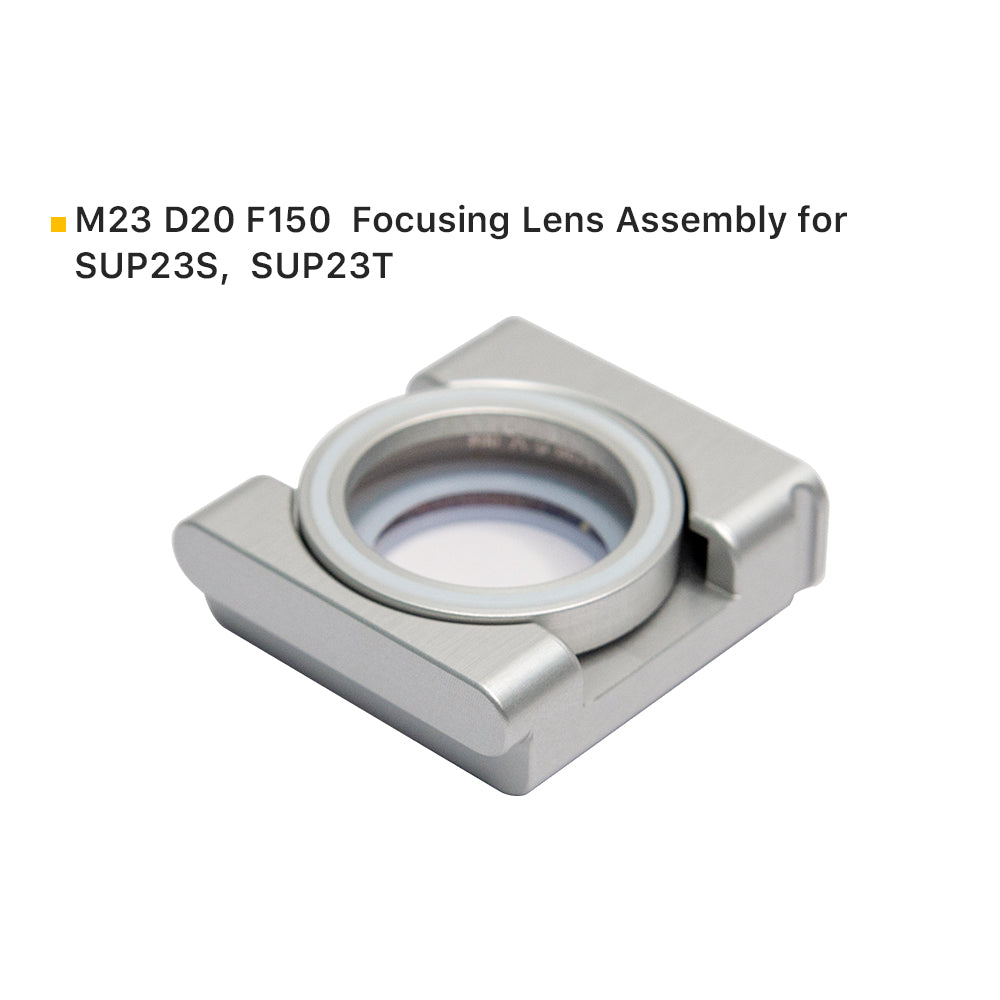

RedSabre / CW 1500W F150 Focus Lens Cartridge for SUP23T
Catalog SKU LWD-OPT-009
Special order
Match the original part number, welding-head version and specification before choosing a replacement.
Selected configuration:
Read specifications and fitment ↓Change machine ↗Special order. Stock availability and dispatch date will be confirmed after ordering. If the part cannot be supplied, the order will be refunded.
Machine fitment
Find your exact model below, then check the required head, connection or original part number.
| Machine | Required configuration |
|---|---|
| Everlast RedSabre 1500X | Requires SUP23T on the installed gun; match the original optical or wire-feed specification. Confirm the gun label; the 1500X model name does not establish its head revision. |
| Everlast RedSabre 2000X | Requires SUP23T on the installed gun; match the original optical or wire-feed specification. Confirm the gun label: published 2000X information names different head revisions. |
| Lasers Only CW 1500W 4-in-1 | Requires the SUP23T welding head. Match the complete lens or cartridge specification; machine wattage alone is insufficient. |
An aftermarket replacement optic for the specified SUP welding-head configuration.
Specifications
| Part number | LWD-OPT-009 |
|---|---|
| Lens diameter | 20 mm |
| Focal length | 150 mm |
| Holder reference | M23 D20 F150 |
| Pack contents | 1 focus lens assembly |
Part-specific requirements
Head compatibility to confirm: SUP23T heads. For a RedSabre or Lasers Only machine, first verify that the installed head is one of these models and that the complete optical or cartridge specification matches the original.
Fitment limits: No SUP33T compatibility is claimed. An aftermarket sourcing candidate is not an OEM-certified machine replacement. SUP21T and SUP23T cartridge mounts differ.
Reference image may show several configurations. This listing includes only the single part and specification named above.
